KILL SWITCH TEISI TYPE EVH AVEC LED NOIR

INTERRUPTEUR ON/OFF (MOMENTARY KILL SWITCH) ALLPARTS TEISI TYPE EVH AVEC LED NOIR

---

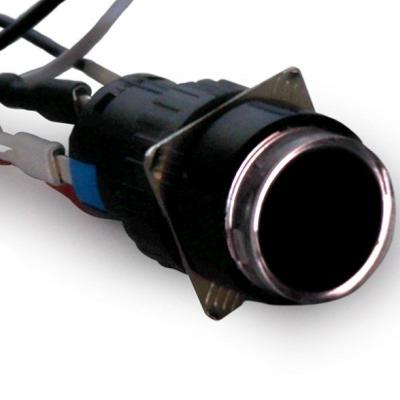

Momentary Kill switch

trou16mm de diamètre nécessaire

On enfonce, le son se coupe.
Pas de click. Silencieux

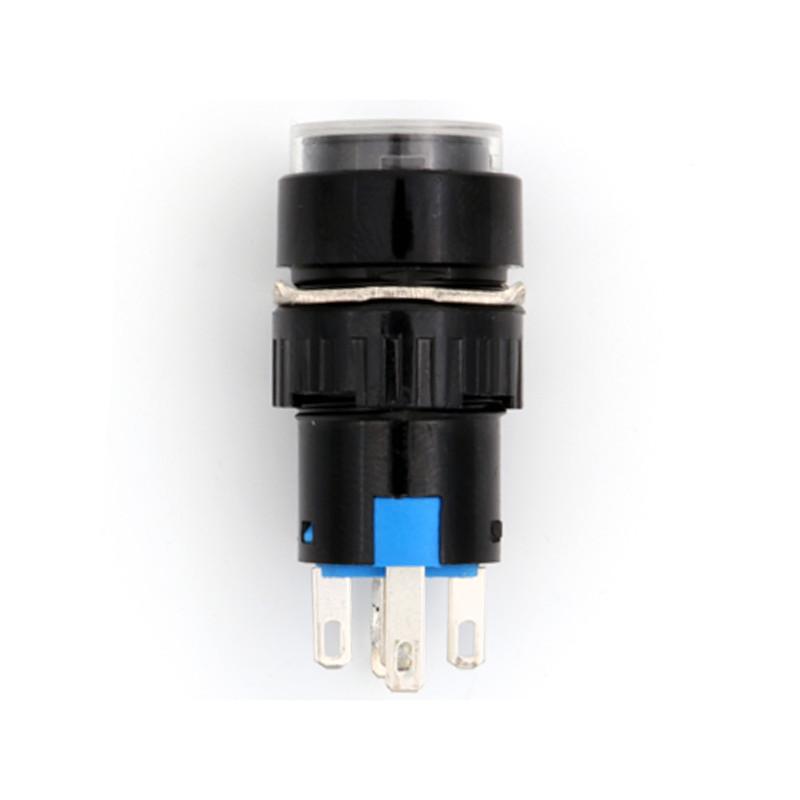

·Type: Momentary Push Button Switch
·Operation Type: Normally Open
·Housing Material: Plastic
·Mounting hole Size: 16mm
·Mounting Panel Thickness: 1mm-6mm
·Operation Pressure: about 5n
·Operation Stroke: about 3mm
·LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
·LED Life: About 40,000 hours
·LED Power Draw: 15mA
·Contact Resistance: <50 mOhm
·Mechanical Life: 1,000,000 cycles
·Switch Rating: 3A/36VDC

What does all this mean? You're getting a tough switch that will last a long time in your instrument and will look good doing it!

The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself.
If you do not have that skill, you should have a guitar repair person do it.
If you need assistance with installation check out one of our Allparts Premium Installation Partners.

This package comes with everything:

Tesi NELLI 16mm Momentary Guitar Kill Switch - This is the size used on the Wolfgang Tour Guitar.

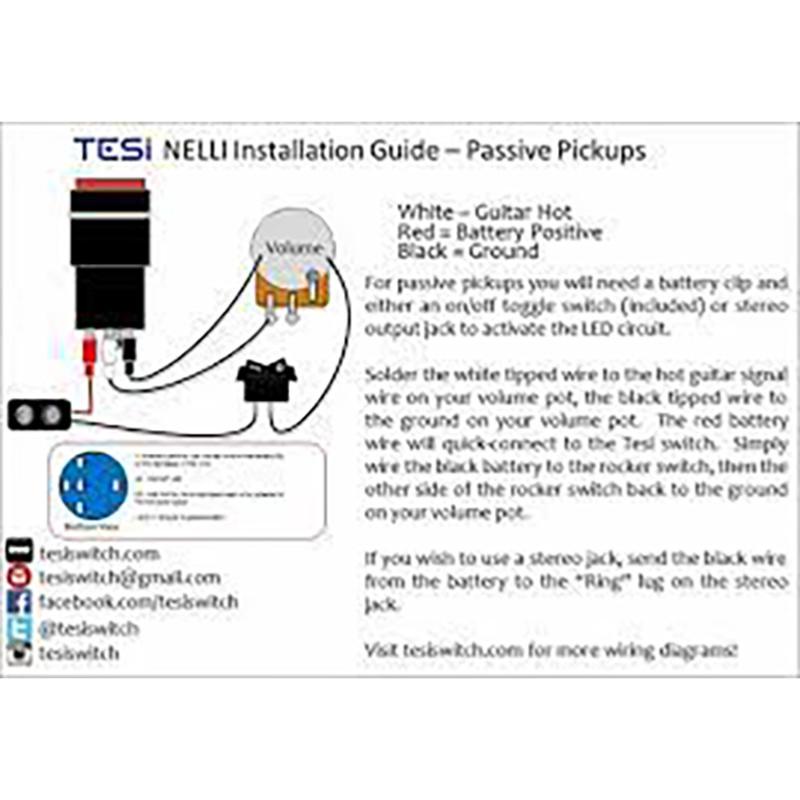

Tesi Quick-Connect wiring Bundle that includes:

·1 Black/Black ground wire
·1 Black/White hot wire
·1 9V Battery Harness with 330 Ohm resistor
·1 On/Off Rocker Switch

When used with active pickups and/or a stereo output jack (not included) the Tesi NELLI does not require the included on/off rocker switch.
